Stackable, nestable or folding: which crate saves the most space?

Every empty crate you store or freight is paying rent. Stackable, nestable and folding designs each attack that cost in a different spot — stackable saves space when the crate is full, nestable shrinks the empties, and folding collapses flat for storage and the return leg. The trick isn't picking a winner; it's matching the design to where your space actually hurts. This guide works the numbers on real Australian-standard crates and shows how to choose.

Stackable, nestable or folding — what is the real difference?

The three designs save space at three different points in a crate's life: loaded, empty, and idle. A stackable crate is strong when full but takes the same room empty as full; a nestable crate shrinks once it's empty; a folding crate collapses flat whether it's in a yard or on a backhaul. Pick by asking where in that cycle your space — and freight — costs the most.

• Stackable — locks into stable loaded columns so you build up, not out. Best vertical and racking use when full; no saving empty.
• Nestable — slides inside the crate below when empty, so a column of empties shrinks dramatically. Saves empty storage and return freight; usually won't stack as high loaded.
• Stack-nest — does both depending on which way up it sits: stack secure loaded, nest down empty. The both-ways compromise.
• Folding / collapsible — walls drop to a thin flat panel. Reclaims the most space of any design when empty, at the cost of a few seconds to erect and a higher unit price.

None of these is "best" in the abstract. A grower back-hauling thousands of empties from a packhouse has a completely different problem from a DC that fills crates once and racks them — and the right answer flips accordingly. The rest of this guide quantifies each case using real crate dimensions so you can see the gap rather than guess at it.

When does a stackable crate save the most space?

A stackable crate wins when your crates spend most of their life full and standing — in a store, a cool-room or on racking — because it turns floor space into vertical space. Interlocking feet and rims let loaded crates build into a self-supporting column that won't shift, so you use the full clear height of the building instead of spreading pallets across the floor. The catch is unavoidable: a stackable-only crate is the same size empty as full, so once it's emptied it keeps consuming the space and freight it did loaded.

That makes stackable the right pick for fixed, one-directional flows: product comes in, sits in the crate through storage or display, and the crate doesn't travel back empty in bulk. Retail back-rooms, parts stores and any operation that fills once and holds are natural fits. The moment empties start moving in volume, though, a stackable-only design quietly becomes the most expensive option you can run, because you're paying to ship and store air.

When is a nestable or stack-nest crate the answer?

Nestable and stack-nest crates earn their keep the moment empties start travelling. A nestable crate slides down inside the one below when empty, so a tall column of empties collapses to a fraction of its loaded height — that's where the return-freight and idle-storage savings live. The trade-off for a pure nestable is that it generally won't stack as high or as securely when loaded, because the same taper that lets it nest also stops it locking into a rigid column.

A stack-nest crate (also sold as attached-lid or bale-arm) resolves that tension by doing both depending on orientation: load it and turn it one way and it stacks securely; empty it and turn it 180° and it nests down. For a closed loop — a supermarket network, a 3PL run, a removals fleet — that's usually the sweet spot, because the same crate stacks full on the outbound leg and collapses empty on the return. The 52 L stack-and-nest crate above is a typical workhorse: a smooth, recycled-PP body that columns up loaded for storage and nests down between trips, so one crate covers both halves of the cycle.

This is exactly the model that lets reusable crates beat single-use packaging on cost. A crate that nests empty can ride back to be refilled instead of being binned, which is the whole economic case behind returnable transit packaging in supermarket and food-distribution networks.

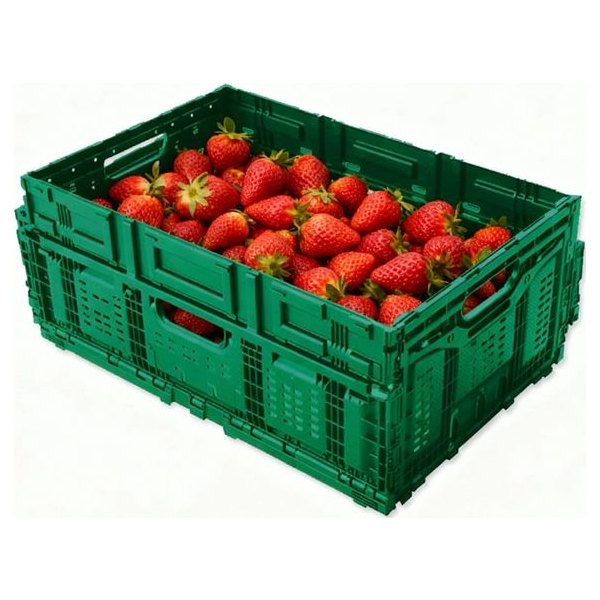

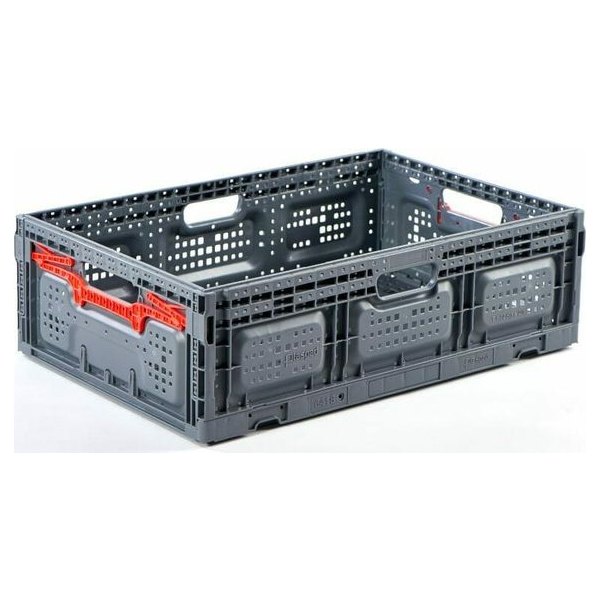

How much space does a folding crate actually reclaim?

A folding (collapsible) crate reclaims the most space of any design — and on real Australian-standard produce crates the numbers are dramatic. When the walls drop flat, a crate that stands 185–259 mm tall in use collapses to a flat panel just 28–48 mm high. That's roughly 80–87% of the standing height gone, every time the crate goes back empty or into the rack between seasons.

Put that in freight terms. In a 2 m clear stacking height you can stand about ten loaded 185 mm crates; fold the same crates flat at 28 mm and roughly seventy panels fit in that identical height. So the fold turns one vertical metre of empties into about seven metres' worth of crate — which is why, on any lane that moves empties in bulk, folding flat beats every other format. You ship and store air-free.

The same physics scales up to bulk bins. A folding vented pallet box that stands 785 mm in use collapses to around 299 mm folded — only a ~2.6× ratio rather than the ~7× of a slim crate, because a bulk bin's walls are deeper relative to its base, but still over 60% of the height reclaimed on a unit that holds hundreds of litres. For a yard full of idle bins or a truck of returns, that's the single biggest space win available at scale, which is why it's the heart of the rent-vs-buy decision on seasonal fleets.

The hinge isn't the weak point — but the column rating is

A common worry is that folding crates must be flimsy because they collapse. In a quality crate the opposite is true: the hinge lines and corner locks are engineered to carry the stacking load when erected, so a folding crate holds its rated weight in a loaded column just like a fixed one. What actually limits how high you stack any crate — folding, nestable or fixed — is the column strength of the crate below, the compressive load it can bear without bowing. Plastic crate strength is assessed under recognised methods such as ISO 8611 for the pallet base of a unit load and the loading rules of AS 4084:2023 where crates go onto racking (iso.org), and the practical lesson is the same as for pallets: a crate that physically stacks ten high still has to carry the nine above it. Always check the stacking (static) rating against your real column height, and don't let an impressive fold ratio tempt you past it.

How do the designs compare on empties per truck?

Below is a like-for-like comparison built from our own catalogue specs, so you can see the space saving on real units rather than in the abstract. The standing and folded heights are the manufacturer's published dimensions; the "empties per 2 m height" and reclaim figures are simple arithmetic from those heights (clear height ÷ unit height), to show how each design behaves when you stack or fold the empties.

The pattern jumps out of the last two columns. A stackable-only crate reclaims nothing empty; a stack-nest crate claws back a useful chunk; a folding crate erases four-fifths or more of its height. On a single semi-trailer of empties, that difference is the gap between one return load and four — the reason a few cents of extra unit cost on a folding crate is repaid in freight on the very first backhaul.

Why does this matter more for produce and reuse?

Because produce supply chains run huge volumes of empties and live or die on reuse — so the empty-crate maths above lands straight on the bottom line. A grower or packer cycling crates between paddock, packhouse and retail moves as many empty crates as full ones, and every empty leg is pure cost. Folding and nesting designs convert that dead freight back into capacity, which is why vented collapsible crates dominate fruit-and-vegetable handling.

There's an environmental ledger sitting on top of the freight one. The Food and Agriculture Organization estimates that roughly 14% of the world's food is lost between harvest and retail, with handling and packaging a contributor (FAO, The State of Food and Agriculture 2019 — fao.org), and durable reusable crates that protect produce and cycle for years are part of cutting that loss. Reuse also counts toward Australia's packaging goals: under the national framework administered by the Australian Packaging Covenant Organisation, the 2025 National Packaging Targets push hard for reusable and recyclable packaging over single-use (APCO — apco.org.au). A crate that folds flat, rides back and refills for a decade is exactly that story.

For the crop-handling side of this — venting, hygiene and how much actually fits in each bin — see why potatoes and onions need vented bulk bins, and browse the breathable, foldable formats across the fresh-produce range.

How do I choose without getting it wrong?

Choose by where your space costs the most, not by which design sounds best — then size within that choice. The single question that settles it is: is my space hurting me full, empty, or on the way back? Run the short checklist our own team uses before recommending a crate:

• Map the cycle. If crates fill once and hold, lean stackable. If empties travel in bulk, lean nestable / stack-nest. If empties travel and sit idle between seasons, lean folding.
• Measure your clear height. Stacking gains are capped by building, rack and truck height — know the clear height before you compare crates, because that's what turns a fold ratio into real units saved.
• Count the empty legs. The more kilometres your crates travel empty, the more a fold or nest pays back. Closed loops favour collapsible designs heavily.
• Hold the footprint. Standardise on one base size (e.g. the 600×400 or 1165 family) so the same pallet, forklift and truck pattern serves every format and crates interleave on a mixed pallet.
• Cost the trade-off. Folding crates cost a little more per unit and add a few seconds to erect; weigh that against freight and storage saved over the crate's life, not the purchase price alone.

Most sites end up with a deliberate mix — stackable or stack-nest on the floor, folding on the return — rather than one format everywhere. Compare designs side by side in the product finder (filter by stackable, nestable and folding), see the full crate range and bulk bins & IBCs, or answer a few questions and we'll match the format to where your space actually costs you. When you're ready, send your crate sizes, volumes and freight lanes for a spec-backed quote.

Common questions

What is the difference between stackable, nestable and folding crates?

Stackable crates lock into stable loaded columns but take the same room empty as full. Nestable crates slide inside one another when empty so a stack of empties shrinks to a fraction. Folding (collapsible) crates drop their walls flat to a thin panel. Each attacks a different cost: stackable when full, nestable when empty, folding on storage and the return leg.

Which crate saves the most space on the return trip?

A folding crate, by a wide margin. Real Australian-standard produce crates collapse from a 185–259 mm standing wall to a 28–48 mm flat panel — roughly 80–87% of the height gone. That turns a stack of about 10 loaded crates per 2 m of height into around 70 folded panels, so you backhaul far more empties per truck.

What is a stack-nest (or attached-lid) crate?

A stack-nest crate does both jobs depending on orientation: turn it one way and it stacks securely when loaded, turn it 180° and it nests down inside the crate below when empty. Bale-arm and attached-lid crates work the same way. For closed-loop operations that send a lot of empties back, it's usually the best single-crate compromise.

Do folding crates lose strength compared with fixed crates?

A quality folding crate with locking hinges and reinforced corners stacks load-bearing loaded and holds the rated load — the hinge lines are engineered, not a weak point. The trade-off is a few seconds to erect and collapse each crate, and a slightly higher unit cost than a plain fixed box. On lanes that move empties, the freight saving pays that back quickly.

Can I mix stackable, nestable and folding crates in one operation?

Yes, and most sites do. The question isn't which single design is best, it's where your space costs most: full, empty, or on the way back. Many operations run stackable or stack-nest crates on the floor and folding crates on the return leg, all on a shared footprint so the same pallet, forklift and truck pattern serves every format.

Sources: FAO Platform on Food Loss and Waste and The State of Food and Agriculture 2019 (~14% post-harvest loss); Australian Packaging Covenant Organisation, 2025 National Packaging Targets (reusable/recyclable packaging). Standing and collapsed/folded heights are the manufacturer's published dimensions for the specific crate and bulk-bin models referenced; "empties per 2 m clear height" and height-reclaim figures are planning estimates derived by dividing a 2 m clear height by each unit's standing or folded height, and real fit depends on your crate sizes, fill pattern, rack and truck height, and how crates interleave. General buying guidance based on standard transport-packaging design principles. Not a quote.
